Anchor Chain (Stud Link Chain)
| Chain Diameter inches |
Chain Diameter mm |
Grade |
Min Weight kg/27.5m |
| U1 |
U2 |
U3 |
| Proof Load kg |
Breaking Load kg |
Proof Load kg |
Breaking Load kg |
Proof Load kg |
Breaking Load kg |
| 1/2 |
12.5 |
4,700 |
6,700 |
6,700 |
9,400 |
9,400 |
13,500 |
95 |
| 9/16 |
14 |
5,900 |
8,400 |
8,400 |
11,800 |
11,800 |
16,800 |
120 |
| 5/8 |
16 |
7,700 |
10,900 |
10,900 |
15,300 |
15,300 |
22,200 |
155 |
| 11/16 |
17.5 |
9,100 |
13,000 |
13,000 |
18,300 |
18,300 |
26,100 |
200 |
| 3/4 |
19 |
10,700 |
15,300 |
15,300 |
21,500 |
21,500 |
30,700 |
218 |
| 13/16 |
20.5 |
12,500 |
17,800 |
17,800 |
24,900 |
24,900 |
35,600 |
265 |
| 7/8 |
22 |
14,300 |
20,400 |
20,400 |
28,600 |
28,600 |
40,900 |
292 |
| 15/16 |
24 |
17,000 |
24,200 |
24,200 |
33,900 |
33,900 |
48,500 |
347 |
| 1 |
26 |
19,800 |
28,300 |
28,300 |
39,700 |
39,700 |
56,700 |
407 |
| 1 1/8 |
28 |
22,900 |
32,700 |
32,700 |
45,800 |
45,800 |
65,500 |
473 |
| 1 3/16 |
30 |
26,200 |
37,500 |
37,500 |
52,400 |
52,400 |
74,900 |
543 |
| 1 1/4 |
32 |
29,700 |
42,500 |
42,500 |
59,400 |
59,400 |
84,900 |
617 |
| 1 5/16 |
34 |
33,400 |
47,700 |
47,700 |
66,800 |
66,800 |
95,600 |
697 |
| 1 7/16 |
36 |
37,300 |
53,300 |
53,000 |
74,600 |
74,600 |
107,000 |
781 |
| 1 1/2 |
38 |
41,400 |
59,200 |
59,200 |
82,800 |
82,800 |
118,000 |
890 |
| 1 9/16 |
40 |
45,700 |
65,300 |
65,300 |
91,400 |
91,400 |
131,000 |
964 |
| 1 5/8 |
42 |
50,200 |
71,700 |
71,700 |
100,000 |
100,000 |
143,000 |
1,063 |
| 1 3/4 |
44 |
54,900 |
78,400 |
78,400 |
110,000 |
110,000 |
157,000 |
1,166 |
| 1 13/16 |
46 |
59,700 |
85,300 |
85,300 |
119,000 |
119,000 |
171,000 |
1,275 |
| 1 7/8 |
48 |
64,800 |
92,600 |
92,600 |
130,000 |
130,000 |
185,000 |
1,388 |
| 2 |
50 |
70,000 |
100,000 |
100,000 |
140,000 |
140,000 |
200,000 |
1,506 |
| 2 1/16 |
52 |
75,400 |
108,000 |
108,000 |
151,000 |
151,000 |
215,000 |
1,629 |
| 2 1/8 |
54 |
81,000 |
116,000 |
116,000 |
162,000 |
162,000 |
231,000 |
1,757 |
| 2 3/16 |
56 |
86,800 |
124,000 |
124,000 |
174,000 |
174,000 |
248,000 |
1,889 |
| 2 5/16 |
58 |
92,700 |
132,000 |
132,000 |
185,000 |
185,000 |
265,000 |
2,026 |
| 2 3/8 |
60 |
98,800 |
141,000 |
141,000 |
198,000 |
198,000 |
282,000 |
2,169 |
| 2 7/16 |
62 |
105,000 |
150,000 |
150,000 |
210,000 |
210,000 |
300,000 |
2,315 |
| 2 1/2 |
64 |
112,000 |
159,000 |
159,000 |
223,000 |
223,000 |
319,000 |
2,467 |
| 2 5/8 |
66 |
118,000 |
169,000 |
169,000 |
236,000 |
236,000 |
337,000 |
2,624 |
| 2 11/16 |
68 |
125,000 |
178,000 |
250,000 |
250,000 |
250,000 |
357,000 |
2,786 |
| 2 3/4 |
70 |
132,000 |
188,000 |
188,000 |
263,000 |
263,000 |
376,000 |
2,952 |
| 2 7/8 |
73 |
142,000 |
203,000 |
203,000 |
285,000 |
285,000 |
407,000 |
3,210 |
| 3 |
76 |
153,000 |
219,000 |
219,000 |
307,000 |
307,000 |
438,000 |
3,479 |

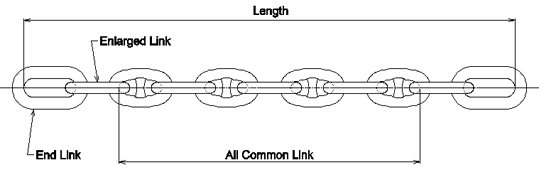

Stud Link Chain Cable And Fittings
Couplings
Between Lengths
| L1 |
 |
| L2 |
 |
TO THE ANCHOR
In the Chain Locker
Stud Link Chain & Fitting Approximately Weights & Details
| Diam. | Stud. Link Chain Weights | Common Link | Enlarged Link | End Link | Joining Shackle
Center | Joining Shackle Type D | Anchor Shackle Type D | Swivel | Swivel Shackle |
| mm | kg/m | kg/27.5m | kg | kg | kg | kg | kg | kg | kg | kg |
| 12.5 | 3.5 | 96 | 0.17 | 0.23 | 0.23 | 0.39 | 0.8 | 1.1 | 0.9 | - |
| 14 | 4.4 | 121 | 0.24 | 0.32 | 0.35 | 0.51 | 1.1 | 1.3 | 1.3 | - |
| 16 | 5.8 | 160 | 0.36 | 0.50 | 0.51 | 0.62 | 1.3 | 1.6 | 1.7 | - |
| 17.5 | 7.0 | 193 | 0.47 | 0.74 | 0.68 | 0.82 | 1.6 | 2.0 | 2.1 | - |
| 19 | 8.1 | 223 | 0.60 | 0.88 | 0.89 | 1.00 | 1.8 | 2.5 | 2.5 | - |
| 20.5 | 10.0 | 275 | 0.75 | 1.10 | 1.13 | 1.35 | 2.1 | 3.3 | 3.1 | - |
| 22 | 11.1 | 306 | 0.93 | 1.25 | 1.28 | 1.6 | 2.5 | 4.0 | 3.5 | 10 |
| 24 | 13.3 | 366 | 1.21 | 1.70 | 1.77 | 2.0 | 3.5 | 5.0 | 5.0 | 14 |
| 26 | 15.7 | 432 | 1.55 | 2.15 | 2.20 | 2.7 | 4.3 | 6.0 | 6.0 | 18 |
| 28 | 18.3 | 503 | 1.9 | 2.8 | 2.9 | 3.3 | 5.0 | 8.0 | 7.5 | 23 |
| 30 | 21.0 | 578 | 2.4 | 3.2 | 3.3 | 3.9 | 7.0 | 9.5 | 9.0 | 28 |
| 32 | 23.9 | 657 | 2.9 | 3.9 | 4.0 | 4.6 | 7.5 | 12.0 | 11.0 | 33 |
| 34 | 27.0 | 743 | 3.4 | 4.7 | 5.0 | 5.8 | 9.5 | 14.0 | 13.5 | 38 |
| 36 | 30.2 | 831 | 4.0 | 5.5 | 5.9 | 6.6 | 11.0 | 17.0 | 16.0 | 46 |
| 38 | 33.7 | 927 | 4.7 | 6.1 | 6.8 | 7.8 | 13.0 | 20.0 | 19.0 | 53 |
| 40 | 37.1 | 1020 | 5.5 | 7.1 | 8.0 | 9.1 | 15.0 | 23.0 | 23.0 | 61 |
| 42 | 40.5 | 1114 | 6.4 | 8.4 | 9.6 | 10.5 | 17.5 | 26.0 | 27.0 | 69 |
| 44 | 44.3 | 1218 | 7.4 | 10.0 | 11.2 | 12.2 | 20.0 | 29.0 | 32.0 | 75 |
| 46 | 48.5 | 1334 | 8.5 | 11.5 | 13.0 | 14.0 | 22.5 | 33 | 38.0 | 82 |
| 48 | 52.8 | 1452 | 9.8 | 13.1 | 15.0 | 16.0 | 26.0 | 37 | 44.0 | 90 |
| 50 | 57 | 1568 | 11 | 15 | 17 | 18 | 29 | 41 | 57 | 97 |
| 52 | 62 | 1705 | 13 | 17 | 20 | 20 | 31 | 45 | 57 | 105 |
| 54 | 66 | 1815 | 14 | 19 | 22 | 20 | 34 | 50 | 67 | 113 |
| 56 | 71 | 1953 | 16 | 21 | 23 | 24 | 38 | 54 | 67 | 120 |
| 58 | 77 | 2118 | 17 | 23 | 25 | 28 | 44 | 65 | 80 | 129 |
| 60 | 83 | 2233 | 19 | 25 | 27 | 28 | 48 | 70 | 95 | 140 |
| 62 | 88 | 2420 | 21 | 28 | 30 | 33 | 52 | 76 | 95 | 140 |
| 64 | 94 | 2535 | 23 | 31 | 34 | 33 | 57 | 82 | 112 | 155 |
| 66 | 100 | 2750 | 25 | 34 | 38 | 38 | 66 | 94 | 130 | 180 |
| 68 | 107 | 2943 | 27 | 37 | 42 | 44 | 70 | 101 | 130 | 180 |
| 70 | 114 | 3135 | 30 | 40 | 45 | 45 | 75 | 108 | 152 | 200 |
| 73 | 124 | 3410 | 34 | 45 | 52 | 51 | 87 | 124 | 172 | 250 |
| 76 | 135 | 3713 | 39 | 50 | 59 | 58 | 99 | 141 | 194 | 315 |
| 78 | 142 | 3905 | 42 | 55 | 63 | 65 | 105 | 150 | 194 | 315 |
| 81 | 154 | 4235 | 46 | 61 | 70 | 74 | 119 | 171 | 220 | 375 |
| 84 | 166 | 4565 | 52 | 68 | 78 | 84 | 134 | 193 | 242 | 425 |
| 87 | 178 | 4895 | 58 | 75 | 86 | 94 | 150 | 218 | 270 | 475 |
| 90 | 189 | 5198 | 64 | 82 | 95 | 105 | 167 | 243 | 300 | 540 |
| 92 | 199 | 5473 | 68 | 88 | 100 | 105 | 175 | 256 | 325 | 570 |
| 95 | 211 | 5803 | 75 | 98 | 112 | 115 | 200 | 290 | 350 | 610 |
| 97 | 220 | 6050 | 80 | 102 | 120 | 135 | 210 | 305 | 450 | 610 |
| 100 | 234 | 6435 | 83 | 112 | 130 | 150 | 230 | 335 | 385 | 680 |
| 102 | 243 | 6683 | 93 | 120 | 138 | 150 | 243 | 350 | 420 | 772 |
